Wood Chip Intake Systems

/Wood Chip Intake Systems

Wood Chip Intake Systems

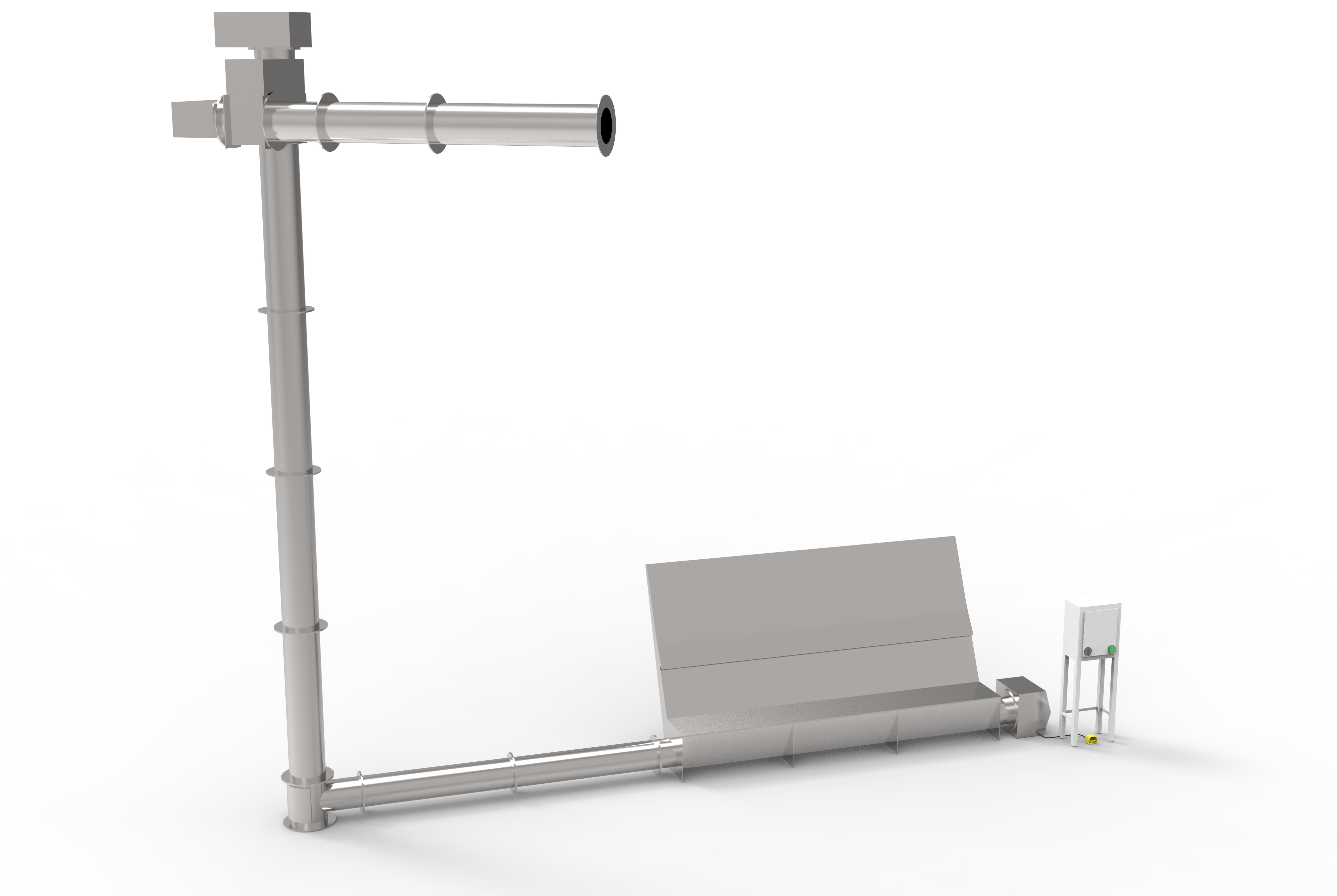

Our standard silo loading system consists of a galvanised steel intake bunker and three screw augers working in tandem to transport the woodchip into the top of the silo.

Intake speeds of 45 – 60m³ per hour are available as standard and the system is run using both a key switch and a foot switch to ensure safe operation. Contact Biomass Silo Systems today to discuss the Wood Chip Intake Systems you require for your needs.

Standard Features

3.6m Wide Galvanised Steel Intake Bunker
Control Panel With Keyswitch and footswitch
Trough Screw Pipe and Coil (6m Max)
Vertical Screw Pipe and Coil (10m Max)
Leveling Screw Pipe and Coil (6m Max)
5.5kw Motors and Transition Pieces
Contact us for more info


Code

Description

Notes

Data Sheet

Quote

S3CI Basic Intake System Package Incl - Auger Motors & Transition Pieces, 3.6m Wide Galvanised Steel Trough With Auger Screw, Control Panel with keyswitch and footswitch DOWNLOAD
GET QUOTE
S3CTS Trough Screw & Pipework 297mm Diameter Pipework & 260mm Diameter Centreless Auger Screw, Sold Per Metre, 6m Max Lenght DOWNLOAD
GET QUOTE
S3CVS Vertical Screw & Pipework 347mm Diameter Pipework & 300mm Diameter Centreless Auger Screw, Sold Per Metre, 10m Max Lenght DOWNLOAD
GET QUOTE
S3CLS Leveling Screw & Pipework 347mm Diameter Pipework & 300mm Diameter Centreless Auger Screw, Sold Per Metre, 6m Max Lenght DOWNLOAD
GET QUOTE



Optional Extras

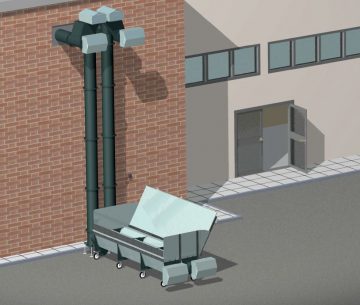

Bunker Wheels

Allows the intake bunker to be disconnected and removed when not in use

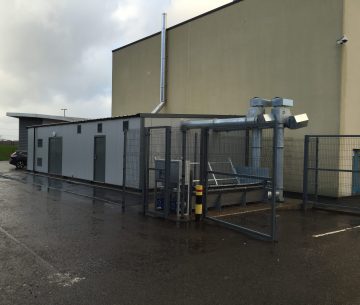

Double Bunker

Allows customers to install twin loading augers and increase the maximum feed rate of 120m3 per hour
